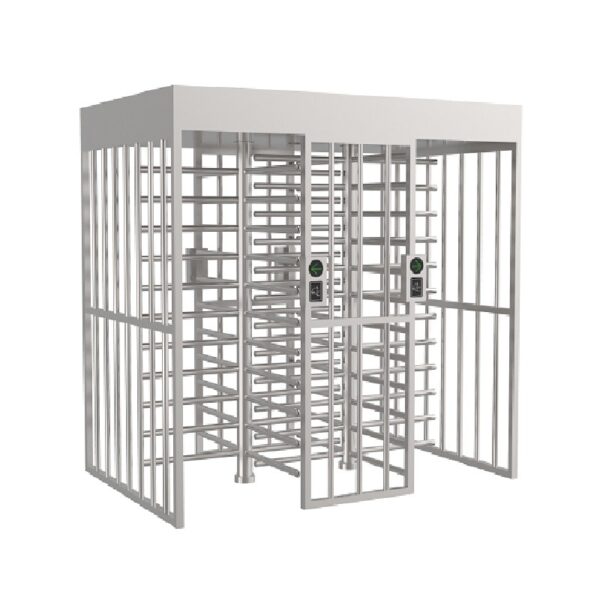

LD-Q804 Full Height Turnstile for Construction Site Security Entrance
Product description
*Structure: The shape of the full height turnstile for construction site security entrance is made of 304 stainless steel. It is rust-proof, sturdy and durable. The equipment is simple to use and maintenance-free.
*Dual channel size: 2500*1500*2300MM
*Single channel size: 1500*1500*2300MM
*Length of brake lever: 600(mm)
*Weight: about 2000KG
*Brake lever steering: one-way, two-way (optional)
*Working environment: indoor and outdoor (canopy)
Product specifications:
1) Power supply voltage: AC220±10% V, 50HZ
2) Drive motor: electromagnetic valve 24V/30W
3) Working environment temperature: -15OC-60 OC
4) Relative humidity: relative humidity ≤90%, no condensation
5) Input interface: 12V level signal or 12V pulse signal with pulse width＞100ms, drive current＞10mA
6) Communication interface: RS485 electrical standard,
7) Communication distance: ≤1200 meters
8) Passing speed: 30 people/minute (normally open mode), 20 people/minute (normally closed mode)
9) Gate opening and closing time: 2 seconds

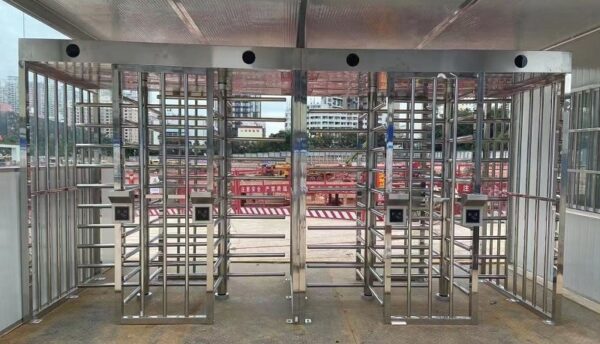

The construction site turnstile is specially customized for the construction site system. Its airtightness can guarantee the safety of the construction site. Various functions can also be customized, such as full height gate with card reader, full height gate with face recognition terminal, full height gate with time attendance, full height gate with counting function, and is convenient for personnel management.
SH Turnstile is the factory of the tursntile gate, we could offer you all the types you need, if you need further help, you can contact with us directly, we will offer you the best solution.
