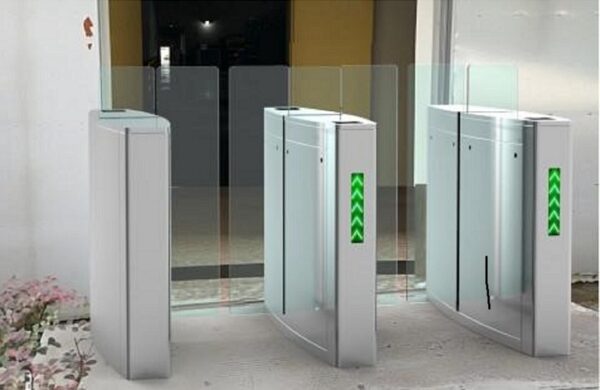

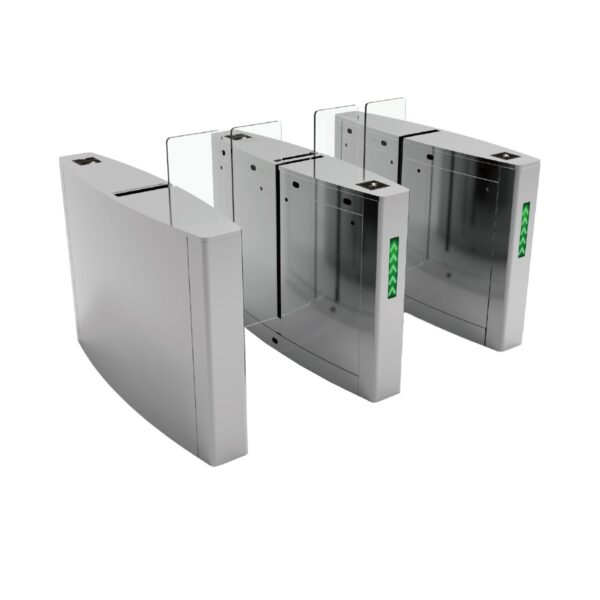

LD-P403 is two way traffic speed gate of Lide Tech, it is high security speed gate with sliding panels, the glass wing height can be adjustable to increase security level from low, medium to high.
Access control speed gate comes from flap barrier speed gate, the speed gate has a larger and higher wingspan area and not easy to cross. Medium height sliding speed gate can provide anti- tailgating function. Lide Tech speed gate system offers physical barrier against trespassing, it can be integrated with all kinds of biometric and access control equipment. When unauthorized traffic attempts to happen, like swipe a invalid RFID card, then RFID access speed gate will automatically issue voice and light alerts.
Key features:
1. Stylish design
2.Anti-rust 304 stainless steel cabinet
3. 5-10 pairs infrared sensors for security
4. Adjustable glass barrier height
5. One way traffic and bi-direction passage
6.Glass wings: 10cm fiber glass
7. Passage width: 600mm standard , 600-900mm ( customized）
Specification:
| Model No. | LD-P403 |
| Size | 1400*310*980mmmm. |
| Material | thickness 1.5mm, 304 stainless steel |
| Channel width | 600mm |
| Passing speed | 35 p/m |
| Unlocking time | 0.2 second |
| Input voltage | 100-240V |
| Drive voltage | 24V |
| Opening signal input | dry contact |
| Ambient temperature | : -25~+70 |
Features:
* For functions of self-checking and audible alarms, it convenient for maintenance and daily use.
* Program operation mode of equipment through the built-in button inside the main board.
* Anti-rushing function: the door locks automatically if not receive the opening signal.
* To Adjust the gate to normal open or normal closed to meet the different requirements.
* Single way or bi-directional of traffic method.
* The gate can unlock in case of power failure and lock again when power recover.
* Automatic reset function: When the baffles retract into the cabinet, if people do not pass through within specified time, system will cancel the permission this time.
