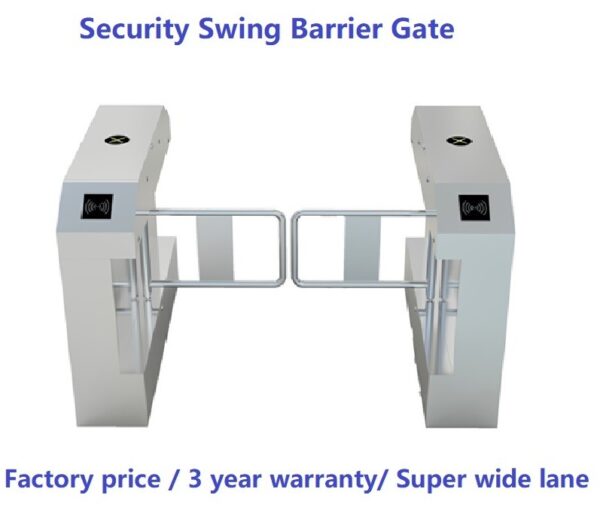

LD-B501 Stainless Steel Security Swing Barrier Gate
SH Turnstile security swing barrier gate can be embedded with card reader, passage counter, qr code or bar code scanner, display panel and other traffic lights.
This swing gate barrier suits all facilities or areas where require wide access. The swing barrier gate can be used in single lane or dual lanes and installed aesthetically in the entrance and exit of facilities.
Features:
*Different operation pattern: Single direction/ Bi-directional, free passage or passage locked.
*Heavy duty design for 24 hours continuous working
*LED display indicates direction and traffic status
*Automatic reset after power failure
*Highly integration with RFID Card, Biometric recognition reader through NO input
Specifications:
| Module No. | LD-B501 |
| Size | 1200*280*980mm |
| Material | 304 stainless steel |
| Access width | 600mm (Maximum 1400 mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V motor, low noise |
| Passing speed | 35~40 people / minute |
| Applicable temperature | : -20~70℃ |
| Life Time | 6 million times; |
| The material thickness | 1.2mm/ 1.5mm |
| Response time | <1s |
| Swing direction | One-way / two-way |
| Opening methods | ID/IC card reader, infrared induction automatic opening, button opening, etc. |
Product features:
1. 304 brushed stainless steel material, rust resistance, capale for exterior application;
2. Using DC brushless motor, Stable and reliable, with low noise;
3. Use a high-precision angle encoder as a sensor to monitor the movement track in real time
4. The opening speed is fast, and the traffic speed is more than 30 persons/ minute;
5. Infrared beam technology monitors the traffic status of personnel in real time, effectively preventing trailing and recoil. After the power is off, the baffle opens automatically to form a transparent passage, which meets the fire protection requirements;
6. Fast identity authentication technology, which can accurately and efficiently identify IC cards, ID cards, and magnetic cards or barcode
7. Sound and light or voice prompt function, beware of illegal entry or irregular passage.
Product application:
The swing gate adopts fast motors, ultra-thin body, beautiful appearance, fast opening speed, etc., suitable for corporate headquarters, high-end commercial buildings, high-end office buildings, and interstellar hotels indoor applications such as offices and reception halls.
